Spindles
Some design changes have occurred over the decades and in some customer applications wall spindles have been used on basins to achieve more spindle height. If unsure please contact CB with a photograph and spindle dimensions for identification.
You may not need to replace the whole spindle, hydroseals and o-ring packs are available below.
|
|
Loading, please wait...-
Hydroseal DR Brass Jumper Valve
SKU: PA8032
High quality DR brass hydroseals are standard all CB Rapid Action tapware.
Hydroseals are now also standard on all of our full turn tapware.
(Please note that hydroseals are not used in flick mixers). Learn More
Ex GST: AUD $5.60 Inc GST: AUD $6.16 -
O-Ring for Standard CB Spindle (BS008.5) - Pack of 10
SKU: PA8003
This o-ring is for our standard jumper valve spindles.
Standard jumper valve spindle requires 1 o-ring.
Packet of 10 o-rings.
Remember to grease o-rings with food grade plumbing grease when replaced. This type of grease should be available from your local plumbing supply store. Learn More
Ex GST: AUD $11.00 Inc GST: AUD $12.10 -
O-Ring for Rapid Action Spindle (BS110) - Pack of 10
SKU: PA8004
This o-ring is for our Rapid Action spindles.
Rapid Action spindles require 2 to 3 o-rings per spindle (will vary by range & spindle type).
Packet of 10 o-rings.
Remember to grease o-rings with food grade plumbing grease when replaced. This type of grease should be available from your local plumbing supply store.
Installation & servicing instructions for Rapid Action® spindles are supplied with the tapware but are also available for download here. Learn More
Ex GST: AUD $11.00 Inc GST: AUD $12.10 -

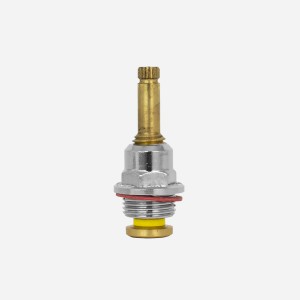

Celestial Bib / Pillar Bonnet & Standard Action Spindle
SKU: CE2003
Use the Finish Code drop-down menu on the product page to calculate the price in various metal finishes.
Ex GST: AUD $60.79 Inc GST: AUD $66.87 -
Celestial Bib / Pillar Bonnet & Rapid Action Spindle
SKU: CE2003-RACT-
Use the Finish Code drop-down menu on the product page to calculate the price in various metal finishes.
Celestial Bib / Pillar Bonnet & Rapid Action Spindle
A = 60mm
B = 24mm
Installation & servicing instructions for Rapid Action® spindles are supplied with the tapware but are also available for download here. Learn More
Ex GST: AUD $86.85 Inc GST: AUD $95.54 -

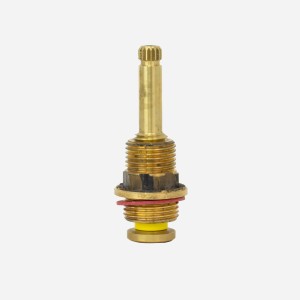

Celestial Wall Bonnet & Standard Action Spindle
SKU: CE2005
Celestial Wall Bonnet & Standard Action Spindle
A = 88mm
B = 41mm
(Please note this spindle is also used for the Forward Bowl Sink Set underassembly, as more height is required than the Basin/Vanity spindle).
This bonnet & spindle is only supplied in Raw Brass as it is not visible when installed. Learn More
Ex GST: AUD $60.79 Inc GST: AUD $66.87 -

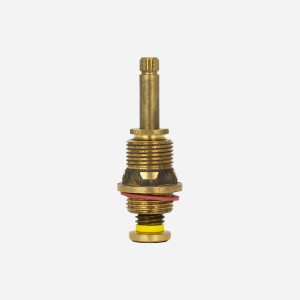

Celestial Wall Bonnet & Rapid Action Spindle
SKU: CE2005-RACT-
Celestial Wall Bonnet & Rapid Action Spindle
A = 89mm
B = 44mm
(Please note this spindle is also used for the Forward Bowl Sink Set underassembly, as more height is required than the Basin/Vanity spindle).
Installation & servicing instructions for Rapid Action® spindles are supplied with the tapware but are also available for download here.
This bonnet & spindle is only supplied in Raw Brass as it is not visible when installed. Learn More
Ex GST: AUD $86.85 Inc GST: AUD $95.54 -

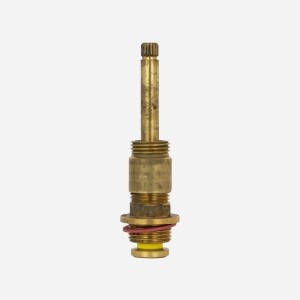

Celestial Wall Bonnet & Standard Action Spindle with 15mm Extension of Handle Height
SKU: CE2007
Celestial Wall Bonnet & Standard Action Spindle with 15mm Extension of Handle Height
A = 103mm
B = 41mm
The extended bonnet & spindle can help deal with situations where the breech is mounted deeper inside the wall. Depending on the situation you may also need to add a Trouble Ring to the wall flange, these are separate items and are additional cost.
This bonnet & spindle is only supplied in Raw Brass as it is not visible when installed. Learn More
Ex GST: AUD $68.24 Inc GST: AUD $75.06 -

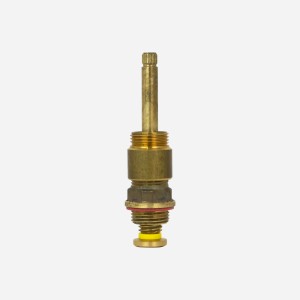

Celestial Wall Bonnet & Rapid Action Spindle with 15mm Extension of Handle Height
SKU: CE2007-RACT-
Celestial Wall Bonnet & Rapid Action Spindle with 15mm Extension of Handle Height
A = 104mm
B = 44mm
The extended bonnet & spindle can help deal with situations where the breech is mounted deeper inside the wall. Depending on the situation you may also need to add a Trouble Ring to the wall flange, these are separate items and are additional cost.
Installation & servicing instructions for Rapid Action® spindles are supplied with the tapware but are also available for download here.
This bonnet & spindle is only supplied in Raw Brass as it is not visible when installed. Learn More
Ex GST: AUD $94.30 Inc GST: AUD $103.73 -

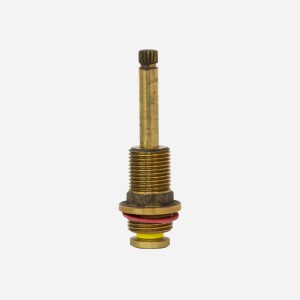

Celestial Basin & Vanity Bonnet & Standard Action Spindle
SKU: CE2006
Celestial Basin & Vanity Bonnet & Standard Action Spindle
A = 71mm
B = 33mm
These measurements are worth checking as older basin & sink tap sets used a wall sized bonnet & spindle. See product code CE2005.
This bonnet & spindle is only supplied in Raw Brass as it is not visible when installed. Learn More
Ex GST: AUD $60.79 Inc GST: AUD $66.87 -

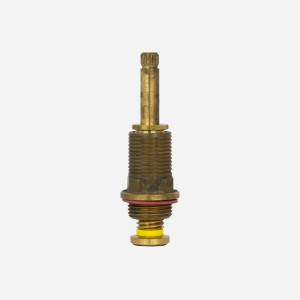

Celestial Basin & Vanity Bonnet & Rapid Action Spindle
SKU: CE2006-RACT-
Celestial Basin & Vanity Bonnet & Rapid Action Spindle
A = 79mm
B = 36mm
These measurements are worth checking as older basin & sink tap sets used a wall sized bonnet & spindle. See product code CE2005-RACT.
Installation & servicing instructions for Rapid Action® spindles are supplied with the tapware but are also available for download here.
This bonnet & spindle is only supplied in Raw Brass as it is not visible when installed. Learn More
Ex GST: AUD $86.85 Inc GST: AUD $95.54
