U Shape Rail with Single Ceiling Support & Cross Rail

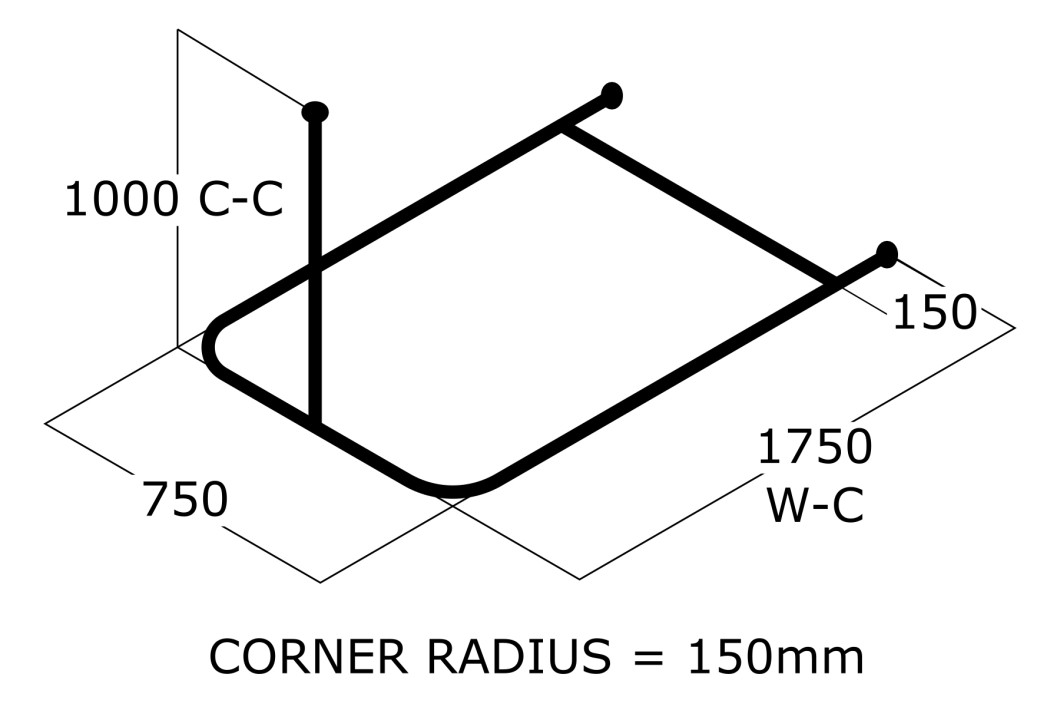

SA7102 Line Drawing

More Images...


U Shape Rail with Single Ceiling Support & Cross Rail


Rail tube diameter = 19.05mm (3/4").

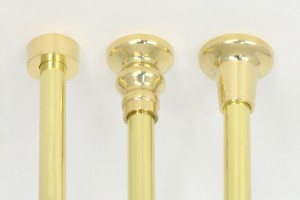

Wall and ceiling flange diameter varies by style choice:
  • Torrens = approx 38mm.
  • Olde Adelaide = approx 49mm.
  • Roulette = approx 54mm.

  • 1000mm ceiling support arm & tube sections meeting the wall can be trimmed shorter on installation.

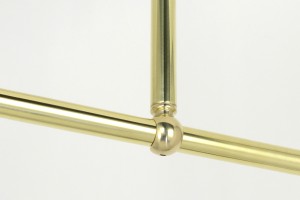

    Cross support rail can be positioned but not trimmed at time of installation (we recommend installing 150mm from wall).
    Supplied with screws & wall plugs.

    Please note that all shower curtain rails are made to order. Should you require different dimensions please contact us for a quote.

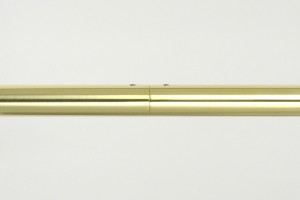

    Sections longer than 1200mm will be made in multiple sections with internal joiners (except satin finishes where maximum length is 900mm between joins).
    SKU: SA7102


    Unit of MeasureEach

    Ex GST: AUD $1,455.00 Inc GST: AUD $1,600.50
    *
    Please select options below...
    Please note this is a maturing/living metal finish.
    Our Antique Brass is a 22 carat gold plate premium electroplated metal finish & has the appearance of freshly polished brass.
    Brushed Antique Brass (aka Brushed Gold) is a 22 carat gold plate premium electroplated metal finish.
    Dull Antique Brass is a 22 carat gold plate premium electroplated metal finish which gives a lower lustre appearance than our Antique Brass (AB) finish.
    Satin Antique Brass (aka Satin Gold) is a 22 carat gold plate premium electroplated metal finish with a satin texture that gives darker hues as light reflects off of the metal surface.

    Maximum number of characters: 255

    Required Fields

    Ex GST: AUD $1,455.00 Inc GST: AUD $1,600.50
    +
    -
    Product Description Specification Order Times Finishes Guide Warranty
